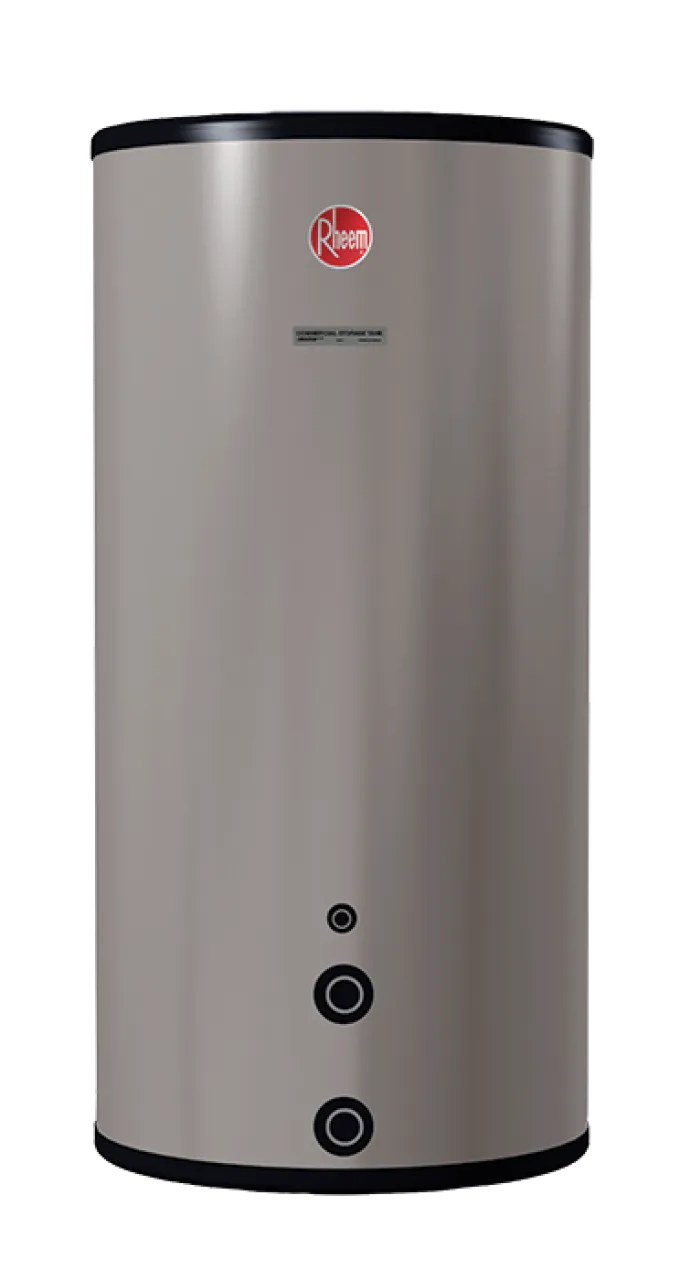

Large Volume Storage Tank - Jacketed

Rheem-Ruud commercial storage tanks are vertical tanks designed for applications that require large quantities of water in short periods of time. When used in tandem with Rheem-Ruud commercial water heating equipment, these storage tanks provide the flexibility needed for many commercial applications. Installed individually, or manifolded, these storage tanks can provide 80% draw capability without an appreciable temperature decrease in single temperature applications.

Features:

Long life tank design – Unique steel formulation with high temperature porcelain enamel to maximize corrosion resistance resulting in a superior tank design. heavy duty magnesium anode rod(s) are installed for longer tank life.

ASME – All large volume commercial storage tanks are certified to ASME boiler and pressure vessel code standards.

Efficient design – 2" of rigid polyurethane foam insulation provides superior insulating qualities resulting in reduced operating costs.

Tank openings – Circulating line /cold inlet connections are 3" NPT (2-1/2" on 200 gallon) and hot outlet is 2".
