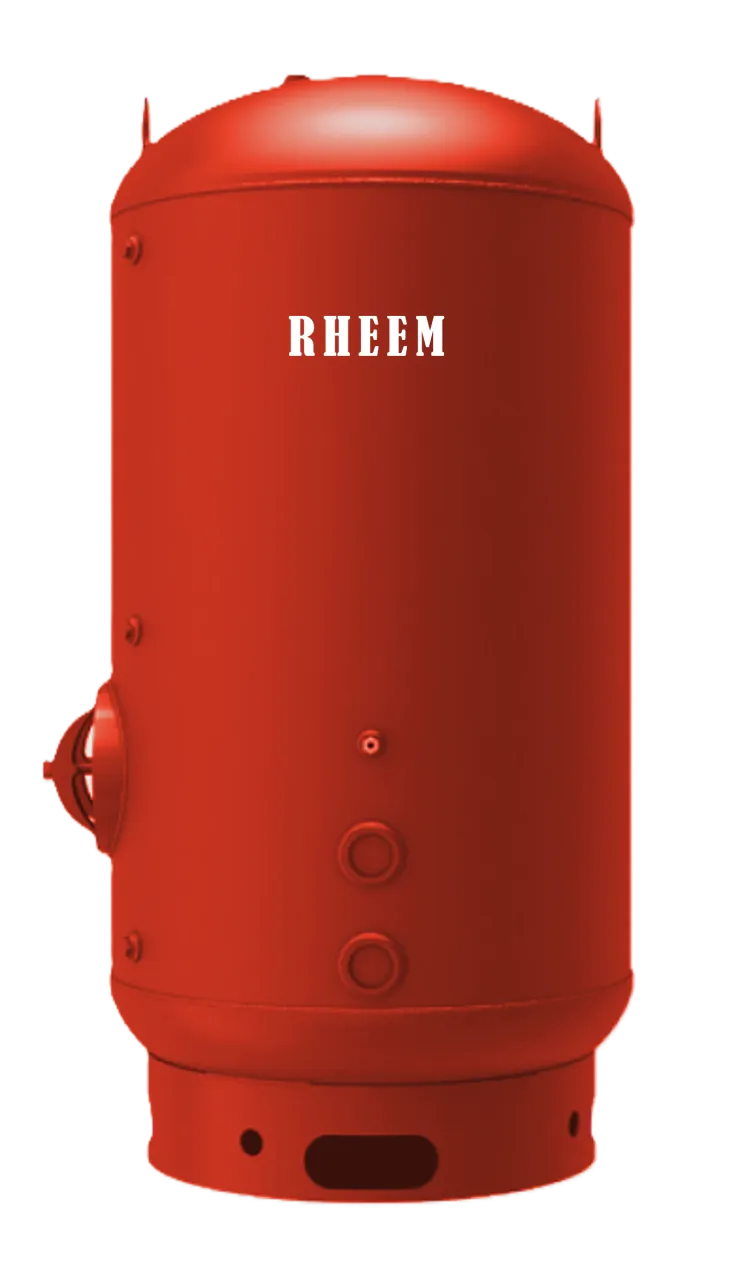

Large Volume Storage Tanks - Non-Jacketed
MODEL STU950A
5-Year limited tank warranty against tank leaks.
- 200 - 940 gallons capacities
- ASME construction standard
- Heavy duty anode rod
- 2" Rigid foam insulation
- 5-year limited tank warranty
Select Capacity
200
Gallons
257
Gallons
318
Gallons
432
Gallons
504
Gallons
752
Gallons
940
Gallons
Models
Check Rebates SKU STU950A
Model Large Volume Storage Non-Jacketed Tanks
Tank Capacity 940
Features & Benefits
These storage tanks provide the flexibility needed for many commercial applications and provide storage capacity for large water draws.
Long Life Tank Design
Unique steel formulation with high temperature porcelain enamel maximizes corrosion resistance and results in a superior tank design. Heavy duty magnesium anode rod(s) are installed for longer tank life.
Tank Openings
Circulating line/cold inlet connections are 3" NPT (2-1/2" on 200 gallon) and hot outlet is 2".
ASME
All large volume commercial storage tanks are certified to ASME boiler and
pressure vessel code standards.
5-Year limited tank warranty against tank leaks.
