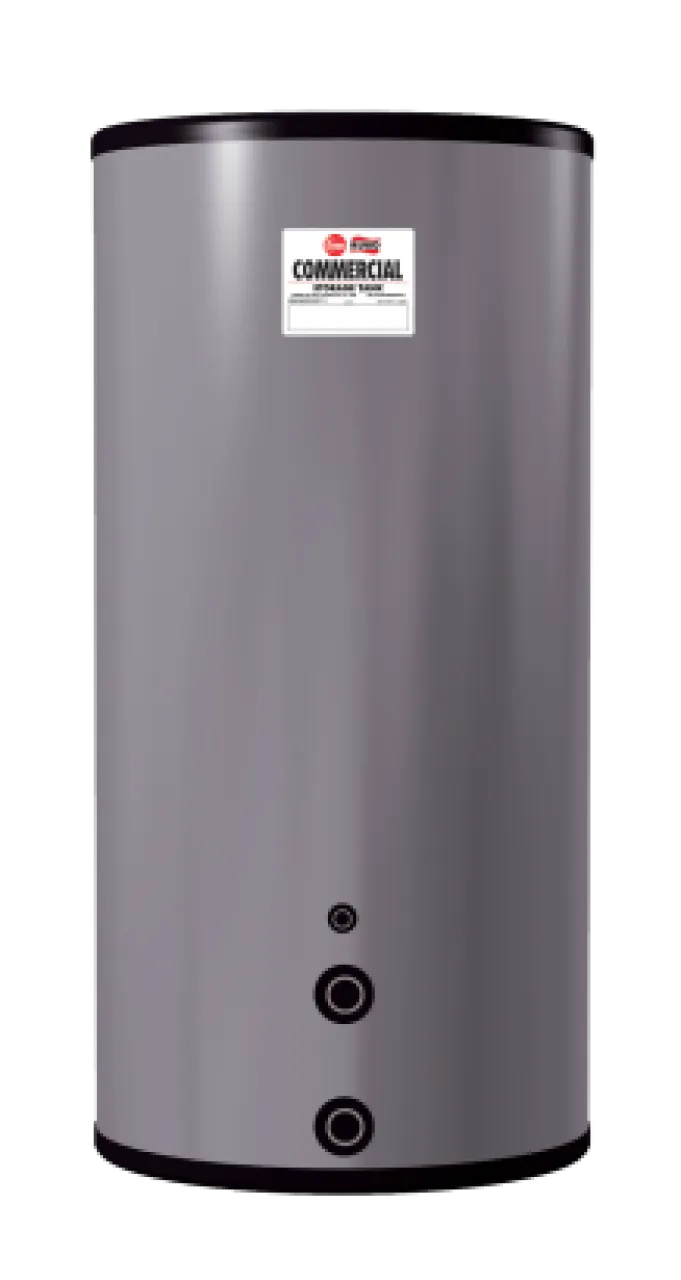

Storage Tank
MODEL ST175(A)
5-year limited tank warranty.
- 80, 115, and 175-Gallon Capacities
- 5-Year Limited Tank Warranty
- Unique Steel Formulation
- Heavy Duty Magnesium Anode Rod
Select Capacity
80
Gallons
115
Gallons
175
Gallons
Models
Check Rebates SKU ST175(A)
Warranty Years 5
Model Storage Tank
Tank Capacity 175
Height 67.25"
Width 32.25"
- 80, 115, and 175-Gallon Capacities
- Unique steel formulation with high temperature porcelain enamel maximizes corrosion resistance and results in a superior tank design.
- Heavy duty magnesium anode rod(s) installed for longer life.
- Rigid 2" polyurethane foam insulation provides superior insulating qualities and results in reduced operating costs.
- Our patented process of injecting foam into the insulating cavity adds additional durability and toughness to the baked enamel steel outer jacket.
- Circulating line connections and hot outlet are 2" NPT on the ST80 and ST120 and 2-1/2" NPT on the ST175.
- Other openings are provided for relief valve and temperature control. ST175 equipped with a hand-hole cleanout.
- All commercial storage tank models are certified to ASME boiler and pressure vessel code standards.
- Low lead compliant.
5-year limited tank warranty.
